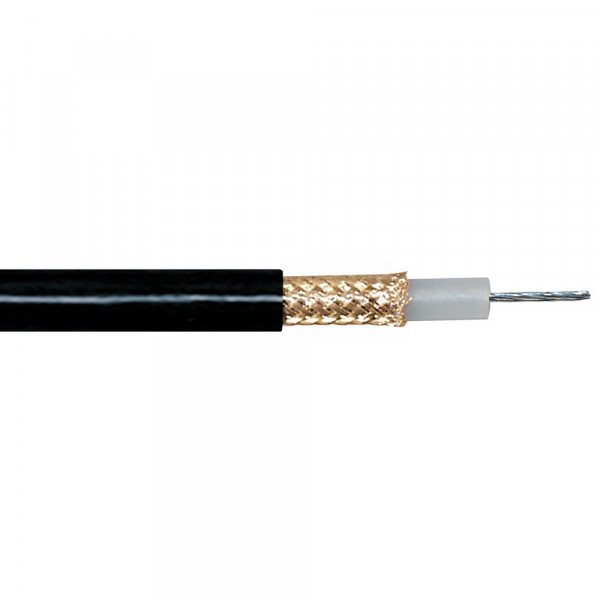

RG coaxial cable

RG coaxial cable

available

  • RG 216-100 R
  • RG 216/U MIL
  • 40 12386 04848 0
100 m, black, spool packing according to US standard MiL C17 RG 216/U MIL  ... more
Product information "RG coaxial cable"

100 m, black, spool packing
according to US standard MiL C17

RG 216/U MIL

inner conductor ø mm, Material 7 x 0,40 Cu verzinnt
insulation ø mm, Material 7,2 PE
1. screening braid, Material 216 x 0,16 Cu
2. screening braid, Material 192 x 0,16 Cu
jacket ø mm, Material/colour 10,8 PVC/black
attenuation at (20 ºC in dB/100m):
100 MHz 7,5 dB
200 MHz 10,9 dB
300 MHz 13,7 dB
500 MHz 18,5 dB
800 MHz 24,0 dB
1000 MHz
1350 MHz
1750 MHz
2050 MHz
impedance 75 Ω
screening immunity
velocity factor v/c 0,66
capacity pF/m 67
DC-Ohm km, in/out 21
min. bending radius mm 50
coil packing -
carton packing -
spool packing 100 m
