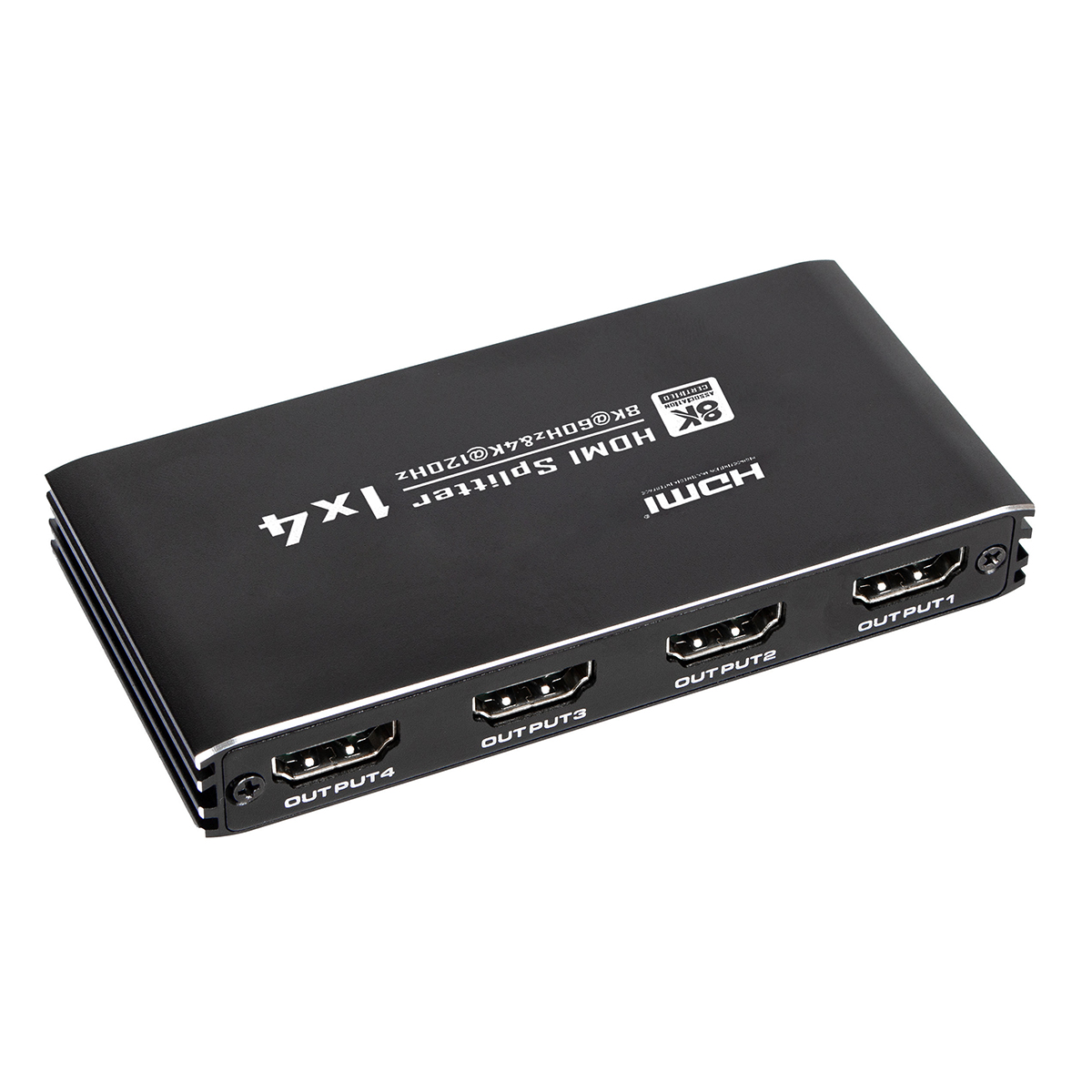

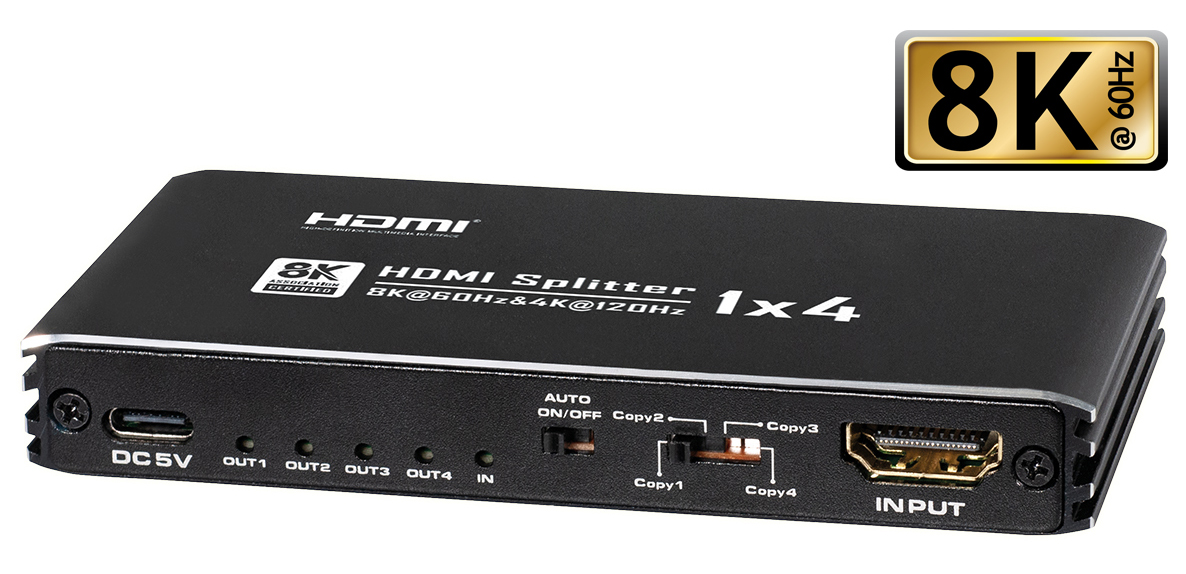

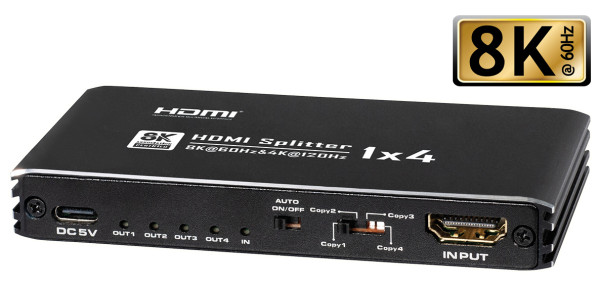

8K HDMI® splitter 1 in 4 out

The HDMI^® splitter effortlessly transmits a signal to up to four end devices. This makes it the perfect solution for large conference rooms or advertising spaces, for example, where several screens need to show the same thing at the same time. Give all your audience in a large room the best possible view of your presentation. Play your advert simultaneously on several televisions in your shop.

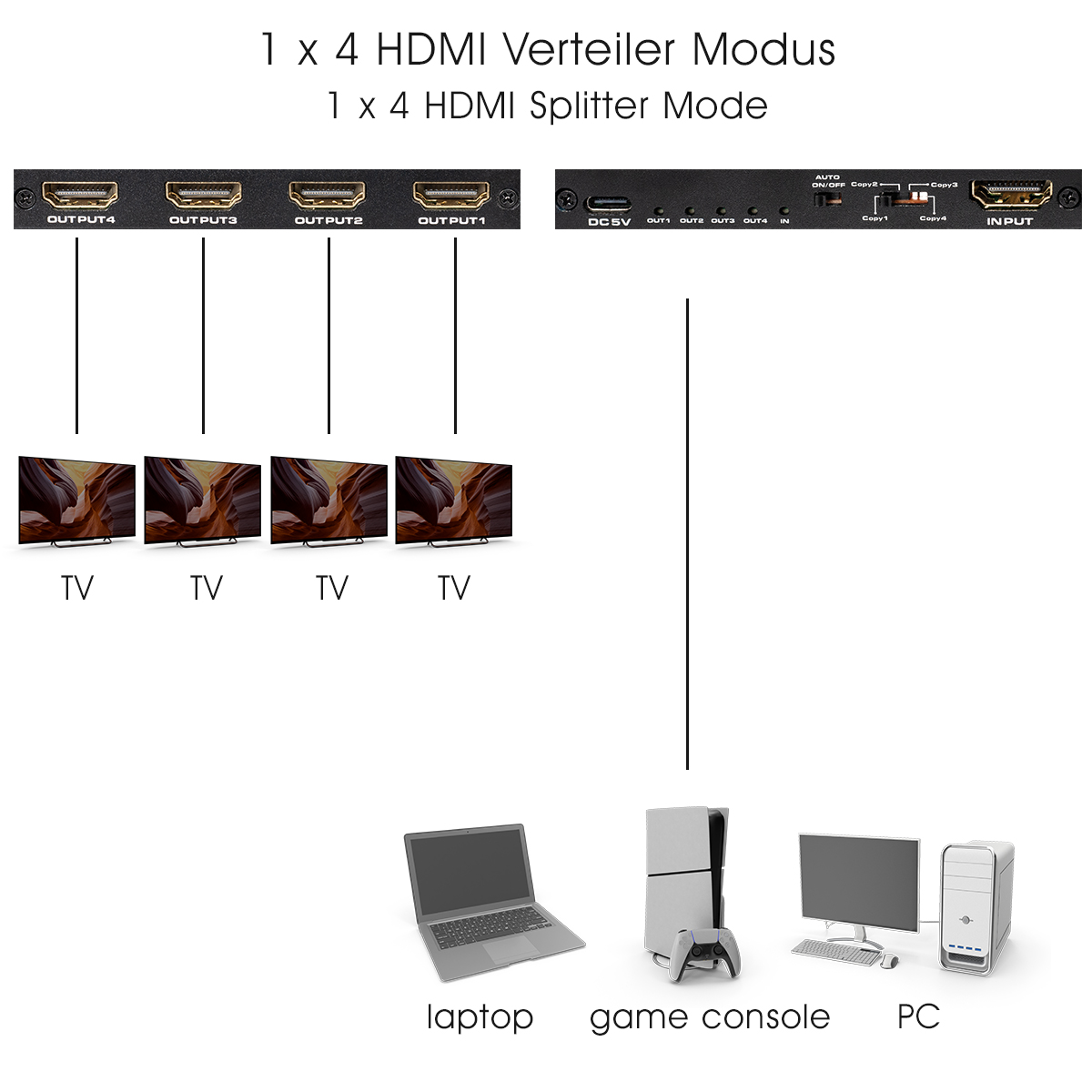

The HDMI^® distributor allows you to connect one HDMI^® source to four HDMI^® end devices. Regardless of whether you want to use your PC, laptop, projector, TV stick, games console or DVD player, the picture can be transmitted to 4 televisions at the same time.

The splitter is the perfect solution for sales areas, events, factories, conference or training rooms.

Thanks to the plug and play solution, connection is quick and easy. The signal can be transmitted up to 8 metres (input 5 metres and output 3 metres).

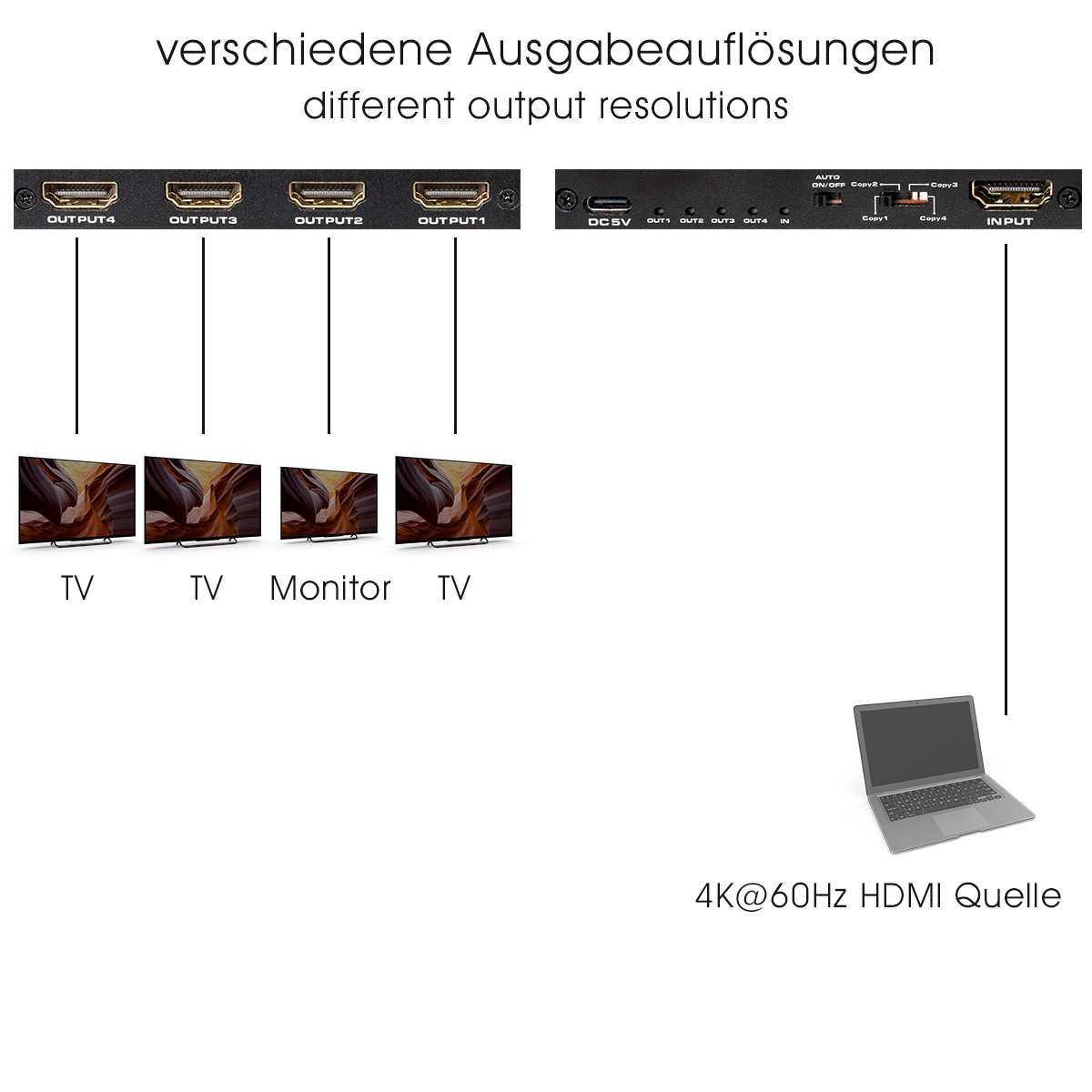

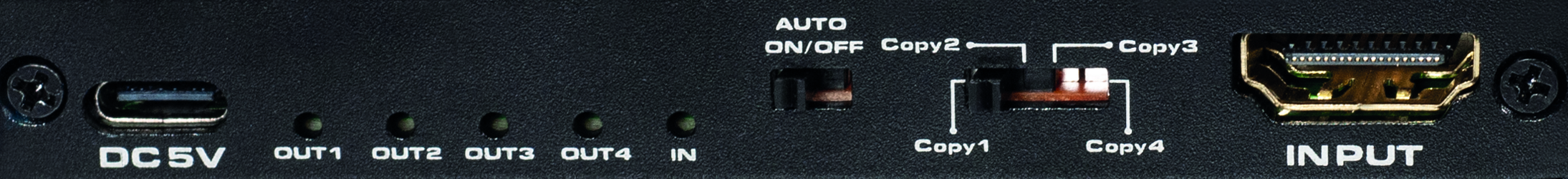

Thanks to the intelligent EDID management with 5 switching modes, it is possible to adapt to different resolution requirements. This allows you to enjoy the best possible picture quality on all televisions at the same time.

The HDMI^® splitter is particularly small so that it can be easily hidden behind the devices.

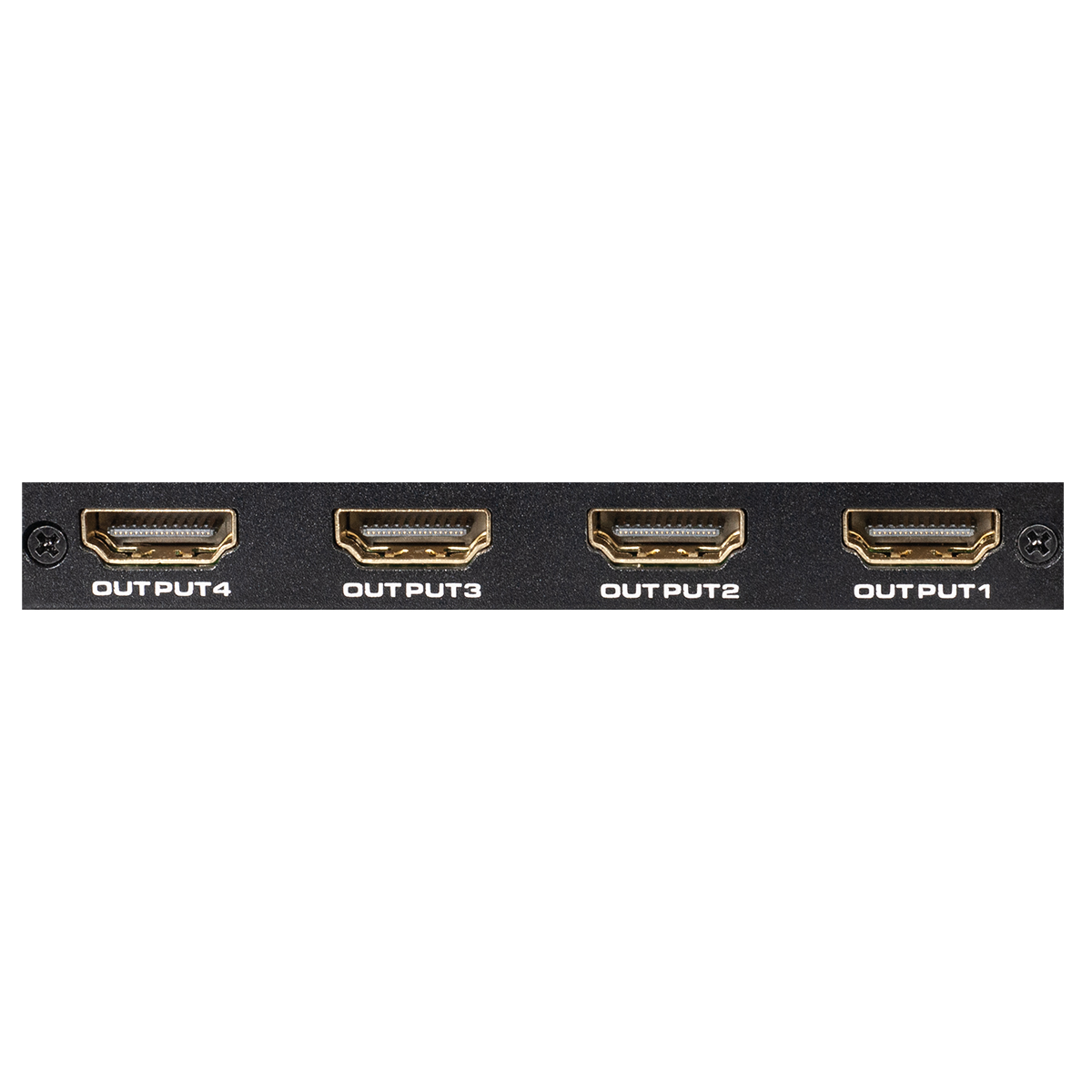

One input, four outputs

✅ 8K

✅ Intelligent EDID management

✅ Plug and play

Technical details:

• 1 HDMI signal to 4 device
• Width 105 mm
• Depth 52 mm
• Height 15 mm
• Supports HDMI 2.1 specifications, compatible with 480P, 576i, 576P, 720P, 1080P, 2160P, 4320P
• Video: 8k@60Hz 4:4:4, HDR Dolby Version, HDR 10+, 4k@120Hz, HDCP2.3, EDID, 3D, RGB 4:4:4
• Deep colour 30bit, 36 bit, 48bit / pixel
• Audio: DTS-HD, Dolby TrueHD, DTS, Dolby-AC3, DSD, etc
• Incl. power supply, DC 5V/2A

Manual DOWNLOAD

DocumentationEU2019-1782_CS26-4L

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
