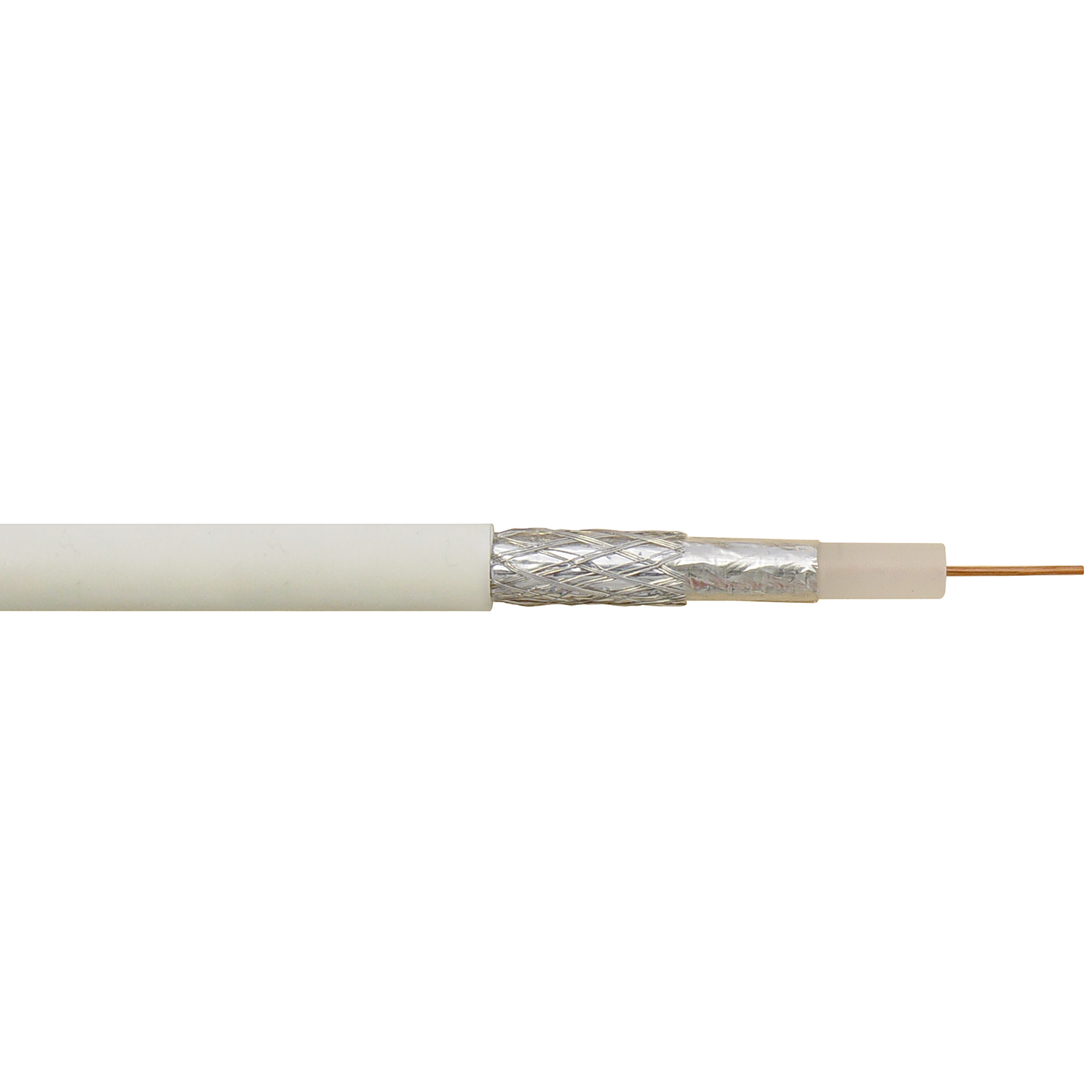

Coaxial cable

Preview: Coaxial cable Preview: CE_ZZF_G686_559B_web
Coaxial cable
CE_ZZF_G686_559B_web


available

  • Item number: KH 16-500 R
  • Description: TV / SAT, Coaxial - 75 Ohm
  • EAN: 40 12386 04091 0
Details
Details
500 m, white, spool packing KH 16       inner conductor... more
Close menu
Product information "Coaxial cable"

500 m, white, spool packing

KH 16

inner conductor ø mm, material 0,7 Cu
insulation ø mm, material 4,4 PE
1. screening, foil Al foil double faced
2. screening braid, material 48 x 0,12 AI
jacket ø mm, material/colour 6,6 PVC/white
attenuation at (20 ºC in dB/100m):
100 MHz 7,0 dB
200 MHz 10,6 dB
300 MHz 12,3 dB
500 MHz 16,5 dB
800 MHz 22,2 dB
1000 MHz 25,0 dB
1350 MHz 30,8 dB
1750 MHz 34,5 dB
2050 MHz 38,5 dB
impedance 75 Ω
screening immunity > 80 dB
velocity factor v/c 0,66
min. bending radius mm 35
coil packing -
carton packing -
spool packing 500m

printing on cable jacket: DOPPELT GESCHIRMT FÜR BK-ANLAGEN
ZZF G 686 559 B CE (Meterprinting)
