Coaxial cable

Preview: KHC 32-100 R Preview: CE-Digital_web

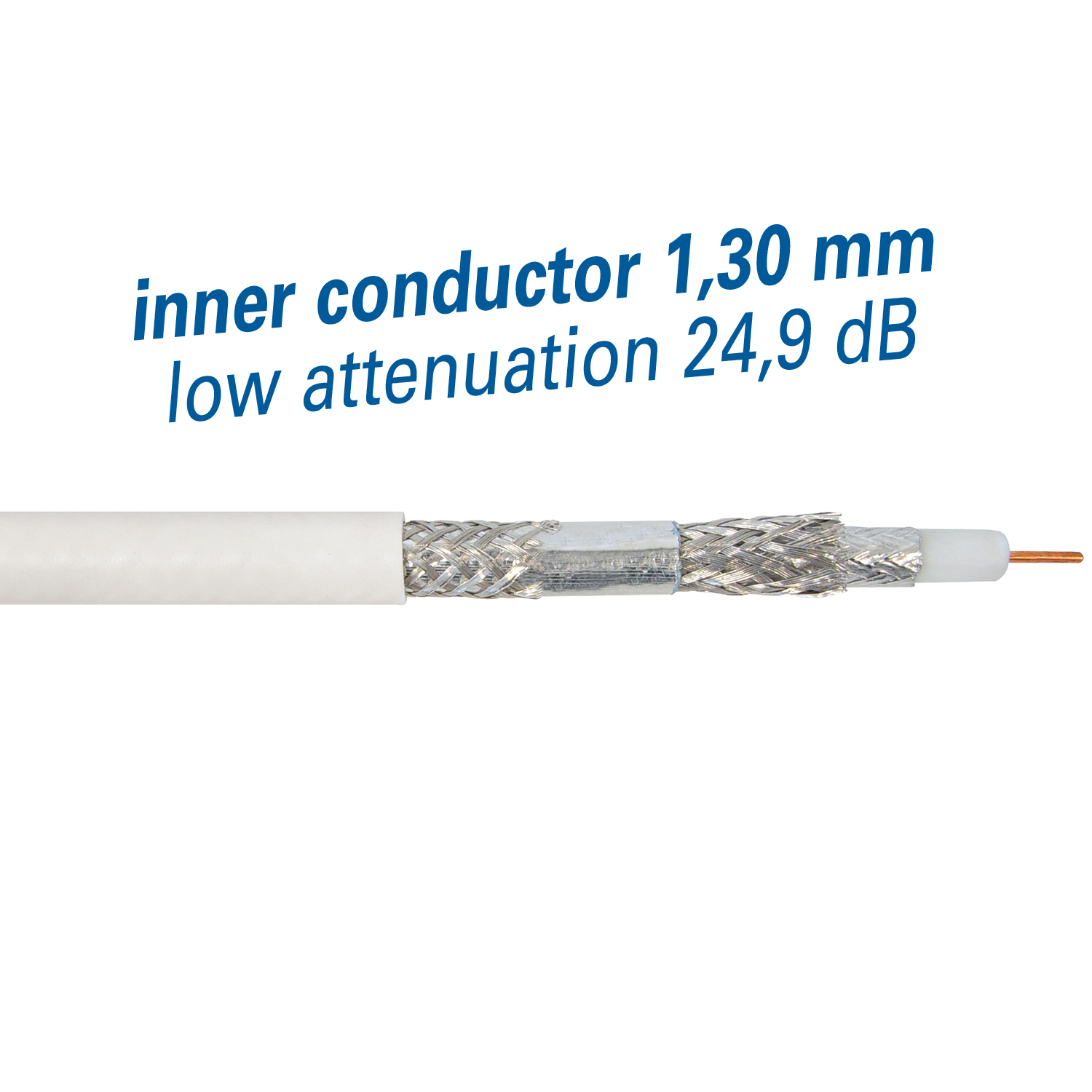

KHC 32-100 R
CE-Digital_web


available

  • Item number: KHC 32-100 R
  • Description: TV / SAT, Coaxial - 75 Ohm, quadro shielded Class A+ (125 dB)
  • EAN: 40 12386 44047 5
Details
Details
100 m, white, spool packing KHC 32       inner... more
Close menu
Product information "Coaxial cable"

100 m, white, spool packing

KHC 32

inner conductor ø mm, material 1,30 CCS
insulation ø mm, material 5,72 Foam PE
1. screening, foil Al foil bonded
2. screening braid, material 128 x 0,12 Al
3. screening, foil Al foil double faced
4. screening braid, material 128 x 0,12 Al
jacket ø mm, material/colour 8,5 PVC / white
attenuation at (20 ºC in dB/100m):
100 MHz 5,0 dB
200 MHz 6,7 dB
300 MHz 8,7 dB
500 MHz 11,6 dB
800 MHz 15,1 dB
1000 MHz 17,0 dB
1350 MHz 20,2 dB
1750 MHz 23,2 dB
2050 MHz 25,4 dB
impedance 75 Ω
screening immunity > 125 dB
velocity factor v/c 0,80
min. bending radius mm 80
coil packing -
carton packing -
spool packing 100 m

printing on cable jacket: Masterpiece 4 shielding High Class CE (Meterprinting)
